Project Description

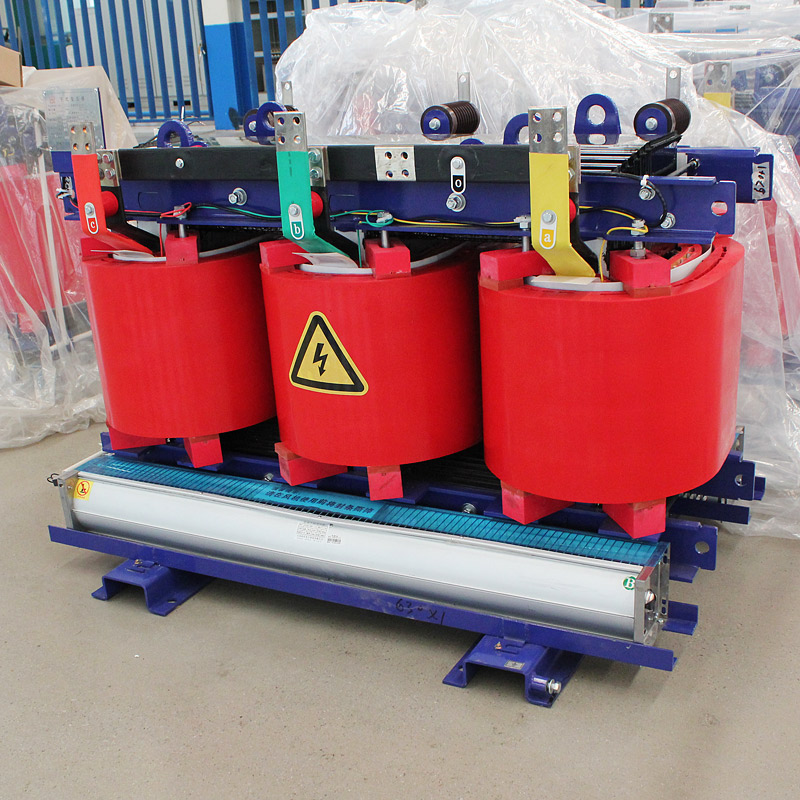

DKSC DRY TYPE GROUNDING TRANSFORMER
Model: DKSC series
Rated capacity: 1100/100kVA
Voltage ratio: 37/0.4kV
Connection group: ZN,yn11
Short circuit impedance: 2.82%
Frequency: 50Hz
Technical standard: GB 20052-2020
Quality standard: ISO 9001:2015; ISO 14001:2015
Product description
Epoxy resin cast dry-type grounding transformer, this product is a neutral point insulated power grid with an artificial neutral point, which is grounded through an arc suppression coil, resistor, or direct grounding. Compensating for single-phase grounding faults in the power grid can prevent the expansion or even eliminate accidents, ensure the quality of power supply, and can be widely used in domain network substations or power plants.
Advantage
-Suitable for three-phase, 50Hz, 6KV, 10KV, and 35KV power grids;
-Mainly used to provide manual and load carrying neutral points for ungrounded neutral point systems for system connection;
-F-class insulation, suitable for indoor use, can also be used after installing a casing;
-Grounding transformers are used in medium point insulated three-phase power systems to provide an artificial neutral point for such systems. The neutral point can be directly grounded or passed through
Grounding of reactors, resistors, or arc suppression coils.
The grounding transformer meets the product quality standards
Dongrun Electric’s The grounding transformer undergoes strict quality control at every stage from input to output, ensuring full compliance with the strict requirements of domestic and international standards.
1. Quality Management System ISO 9001: 2015
The operation of the entire Dongrun Electric system is strictly controlled and managed. This ensures the quality of the product at all stages, from receiving customer requirements to design, materials, production, installation, testing, packaging, delivery, and after-sales, all of which are operated under a strict and tight process.
2. Environmental Management ISO 14001: 2015
Dongrun Electric took the lead in applying the ISO 14001: 2015 environmental management system. The implementation of this process demonstrates Dongrun’s responsibility to a wide range of customers. Dongrun is committed to providing the most environmentally friendly high-quality technical products.
3. Certification Certificate ISO / IEC 17025: 2017
The ISO / IEC 17025: 2017 certification confirms that Dongrun’s technical quality meets the requirements of all specific international testing and calibration laboratory standards. All Dongrun products are fully tested in qualified laboratories before leaving the factory to ensure stable quality and provide customers with absolute peace of mind.
Technical Parameters
| Model | Tapping range of high voltage(%) | Connection group | rated capacity(kVA) | Zero sequence positive antibody(Ω) | no-load loss(kw) | load loss(kw) | no-load current(%) | short circuit impedance(%) | weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| DKSC-100/10.5 | ±2×2.5 ±5 | ZNyn11 / ZN | 100 | 27.6 | 0.42 | 2 | 2.2 | 2.5 | 600 |
| DKSC-200/10.5 | 200 | 13.8 | 0.68 | 3.33 | 2.2 | 2.5 | 930 | ||
| DKSC-315/10.5 | 315 | 12.7 | 0.96 | 4.72 | 1.8 | 4 | 850 | ||
| DKSC-400/10.5 | 400 | 6.89 | 1.08 | 5.47 | 1.8 | 2.5 | 1200 | ||
| DKSC-500/10.5 | 500 | 5.51 | 1.28 | 6.66 | 1.8 | 2.5 | 1300 | ||
| DKSC-630/10.5 | 630 | 4.41 | 1.48 | 7.77 | 1 | 2.5 | 1570 | ||
| DKSC-1000/10.5 | 1000 | 59.3 | 1.96 | 12.9 | 1.3 | 4 | 3130 | ||
| DKSC-2000/10.5 | 2000 | 37.1 | 3.68 | 22.4 | 1.3 | 5 | 5130 |

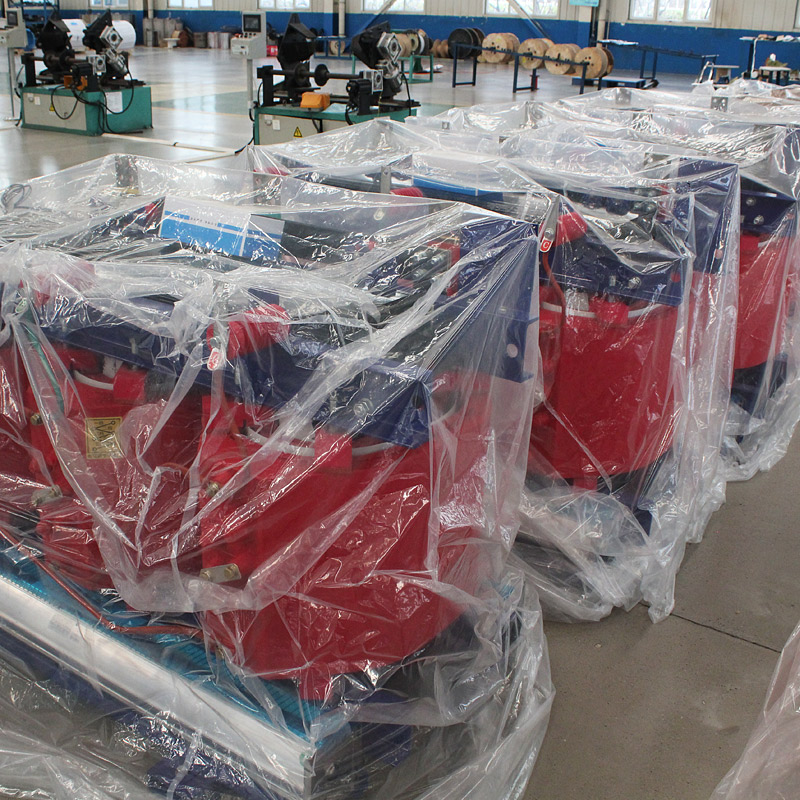

Dong Run Factory
